In film and video production, the right lighting setup can be instrumental in crafting truly compelling visuals. The Godox KNOWLED™ system, in particular, has emerged as a complete lighting solution that caters to the stringent demands of seasoned professionals. In this article, we aim to delve deeper into this trailblazing system, shedding light on its rising popularity among freelance filmmakers on the hunt for a sophisticated lighting setup which will provide them with excellent value for their money.
Quick View

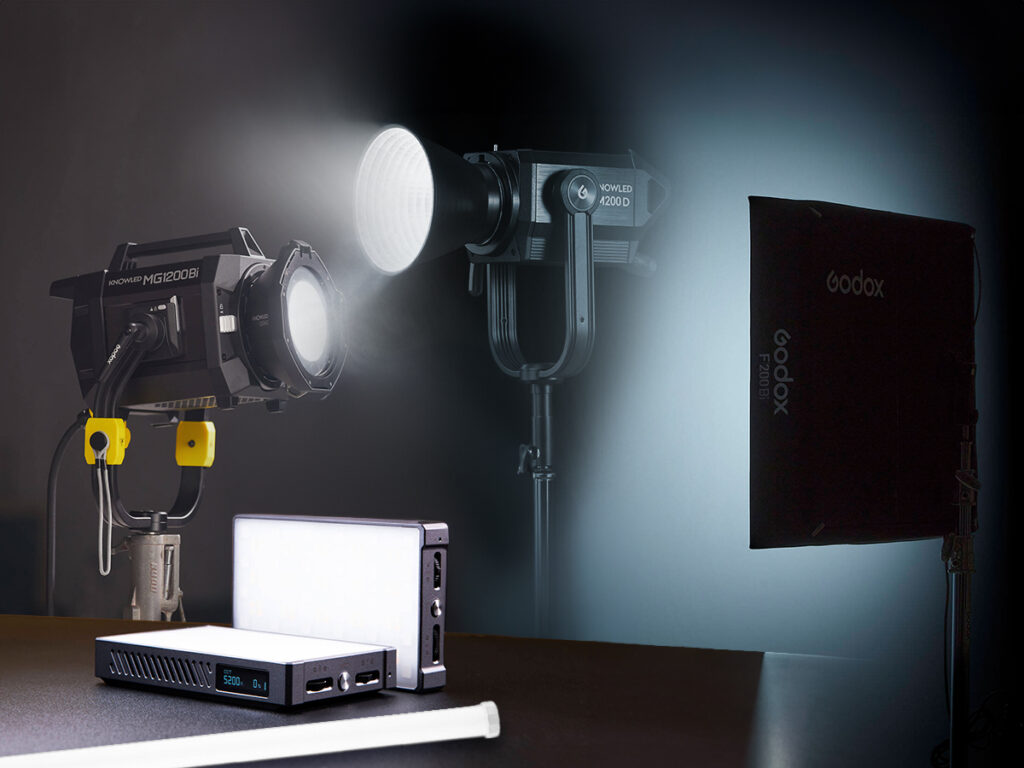

Introducing The Godox KNOWLED™ Series
Immerse yourself in the world of state-of-the-art illumination with the Godox KNOWLED™ Series – a revolutionary lighting lineup that has reshaped the landscape of video production, offering a vast array of versatile and innovative lighting solutions that breathe life into every scene. The series delivers superior control, unmatched efficiency, and unparalleled brilliance, allowing your creative vision to unfold in its full glory.
Designed For Excellence & Beyond
Although the premium pricing may place it beyond the reach of some video & cinema enthusiasts, it’s a worthy investment for those deeply committed to their craft. The advanced features and outstanding performance of this system justify the cost, making it a coveted tool for those who place a premium on quality and innovation. The Godox KNOWLED™ system, which includes COB LED lights, LED panels, RGB tubes, and a wide array of custom light modifiers, is designed specifically for the video industry and allows for precise operation and unique visual effects.
Discover KNOWLED™ Lighting Solutions
MG Series – Godox MG1200Bi / MG2400Bi
As the crown jewel of the KNOWLED™ series, the MG line stands as a testament to power and precision. Embracing Godox’s innovative COB technology, these lights guarantee a robust power draw through the entire 2800–6500 K color temperature spectrum. Their unmatched brightness, coupled with unwavering performance, will revolutionize on-set experiences of any cinematographer. Rigorously tested, they pride themselves on delivering the utmost color fidelity. The IP54 certification paired with sophisticated design ensure optimal performance in any extreme weather, from a downpour to dense fog.
Show specs
MG1200Bi | ffc837 | |
Power supply | 100V-240 V ~ 50/60 Hz @ 14 A (max) | 100V-240 V ~ 50/60 Hz @ 30 A (max) |
Max. power | ≈ 1400 W | ≈ 2900 W |
CCT | 2800 – 6500 K | |
Brightness range | 0 – 100% (0.1% stepless dimming) | |
Dimming curves | Linear / S-curve / Exponential / Logarithmic | |
FX modes | 11 | |
Avg. CRI | ≥ 96 | |
Avg. TLCI | ≥ 96 | |
Waterproof grade | IP54 | |
Controlling methods | DMX 512 with RDM protocol support LumenRadio CRMX RC-A6 / RC-A6II Remote Bluetooth / Godox Light App Ethernet with Art-Net & SACN protocol support RC11 Controller Light Body | |
Bluetooth control distance | Max. 50 m | Max. 100 m |
USB type-A port | Firmware Upgrade 5 V⎓1.5 A Power Supply | Firmware Upgrade |
Dimensions | Body: 37.8 × 57.9 × 35.4 cm | Body: 40.9 × 38.5 × 35.6 cm |
Controller: 16.2 × 19 × 37.2 cm | Controller: 28 × 42 × 21 cm | |
Weight | Body (w/ yoke & reflector): 16 kg | Body (w/o yoke & reflector): 22 kg |
Controller: 6.68 kg | Controller: 13 kg |

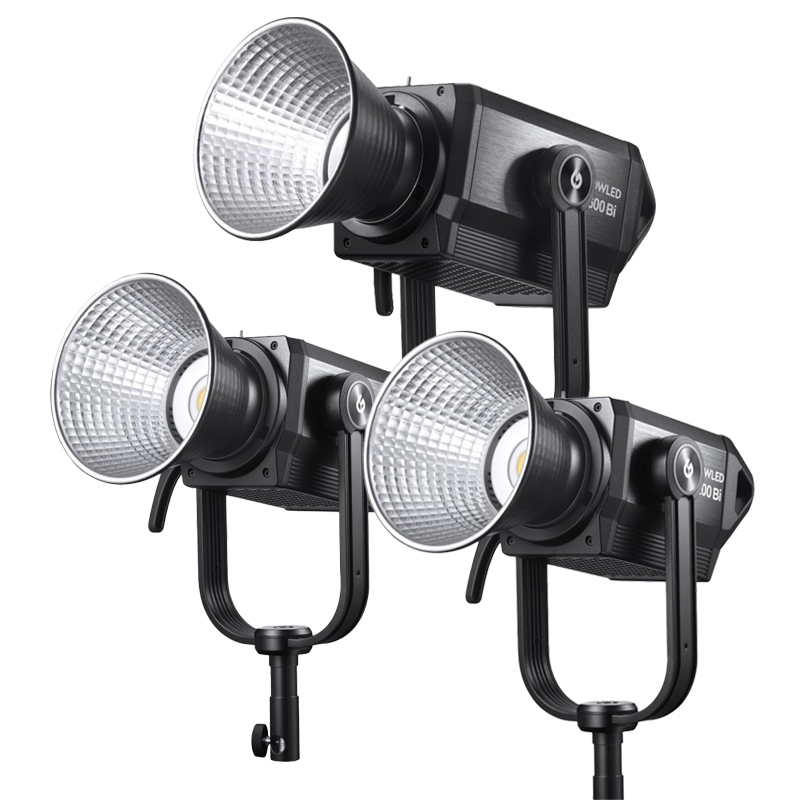

M Series – Godox M200 / M300 / M600
Explore the range of smaller, yet equally robust Bowens mount LED lights. Ranging from 200 to 600 watts, Godox M-Series lights are available in both Daylight (5600 K) and Bi-color versions with a variable color temperature of 2800–6500 K. With their unique and high-performance design, these lights capture the power and sophistication of the MG1200Bi, yet in a more compact form and at a more affordable price point. The M-Series skillfully merges luminosity with efficiency, providing a dependable lighting solution for any setting, irrespective of the conditions.
M200 specs
M200D | M200Bi | |
Max. power | 230 W | |
Light head input | 48 V⎓4.7 A | 48 V⎓4.6 A |
Controller AC power input | 100-240V ~ 50-60 Hz | |
Controller DC power input | 48 V | |
V-Mount battery specs | 14.8 V ~ 150 Wh 26 V ~ 270 Wh | |
Channels | 32 | |
Groups | 16 | |
ID | 1-99, OFF | |
Color temperature | 5600 K | 2800 – 6500 K |
CRI | ≥ 96 | |
TLCI | ≥ 97 | |
Working temperature | -20 – 40°C | |
FX types | 12 | 21 |
Control | DMX512 Bluetooth / Godox Light App 2.4 GHz radio Controller | |
Dimming curve | Linear / S-curve / Exponential / Logarithmic | |
Mute mode | Yes | |
Radio control distance | ≈ 60 m | |
Bluetooth control distance | ≈ 30 m | |
Display screen | 2.4” | |
Dimensions | Body: 42.5 × 23.2 × 14.1 cm | |
Controller: 27 × 12.3 × 13.2 cm | ||
Weight | Body: 3.03 kg | Body: 3.2 kg |
Controller: 2.74 kg | ||
Bluetooth frequency | 2402.00 – 2480.00 MHz | |
Max. transmit power | 5 dbm |
M300 specs
M300D | M300Bi | |
Max. power | 330 W | 360 W |
Light head input | 48 V⎓7 A | |
Controller AC power input | 100-240 V ~ 50-60 Hz | |
Controller DC power input | 48 V | |
V-Mount battery specs | 14.8 V ~ 150 Wh 26 V ~ 270 Wh | |
Channels | 32 | |
Groups | 16 | |
ID | 1-99, OFF | |
Color temperature | 5600 K | 2800 – 6500 K |
CRI | ≥ 96 | |
TLCI | ≥ 97 | |
Working temperature | -20 – 40°C | |
FX types | 12 | 21 |
Control | DMX512 Bluetooth / Godox Light App 2.4 GHz radio Controller | |
Dimming curve | Linear / S-curve / Exponential / Logarithmic | |
Mute mode | Yes | |
Radio control distance | ≈ 60 m | |
Bluetooth control distance | ≈ 30 m | |
Display screen | 2.4” | |
Dimensions | Body: 42.5 × 23.2 × 14.1 cm | |
Controller: 27 × 12.3 × 13.2 cm | ||
Weight | Body: 3.03 kg | Body: 3.5 kg |
Controller: 2.74 kg | ||
Bluetooth frequency | 2402.00 – 2480.00 MHz | |
Max. transmit power | 5 dbm |
M600 specs
M600D | M600Bi | |
Max. power | 740 W | 730 W |
Controller AC power input | 100-240 V ~ 50/60 Hz @ 10 A | 100-240 V ~ 50/60 Hz @ 7.5 A |
Controller DC power input | 48 V⎓15 A | 48 V⎓13 A |
V-Mount battery specs | 14.8 V ~ 150 Wh 26 V ~ 270 Wh | |
Channels | 32 | |
Groups | 16 | |
ID | 1-99, OFF | |
Color temperature | 5600 K | 2800 – 6500 K |
CRI | ≥ 96 | |
TLCI | ≥ 97 | |
Working temperature | -20 – 40°C | |
FX types | 12 | 21 |
Control | DMX512 Bluetooth / Godox Light App 2.4 GHz radio Controller | |
Dimming curve | Linear / S-curve / Exponential / Logarithmic | |
Mute mode | Yes | |
Radio control distance | ≈ 60 m | |
Bluetooth control distance | ≈ 30 m | |
Display screen | 2.4” | |
Dimensions | Body: 44.7 × 24.2 × 15.3 cm | Body: 48.1 × 24.3 × 15.3 cm |
Controller: 33.2 × 12.1 × 17.9 cm | ||
Weight | Body: 4.5 kg | Body: 4.96 kg |
Controller: 3.98 kg | Controller: 3.74 kg | |
Bluetooth frequency | 2412,00 – 2464,5 MHz | |
Max. transmit power | 5 dbm |

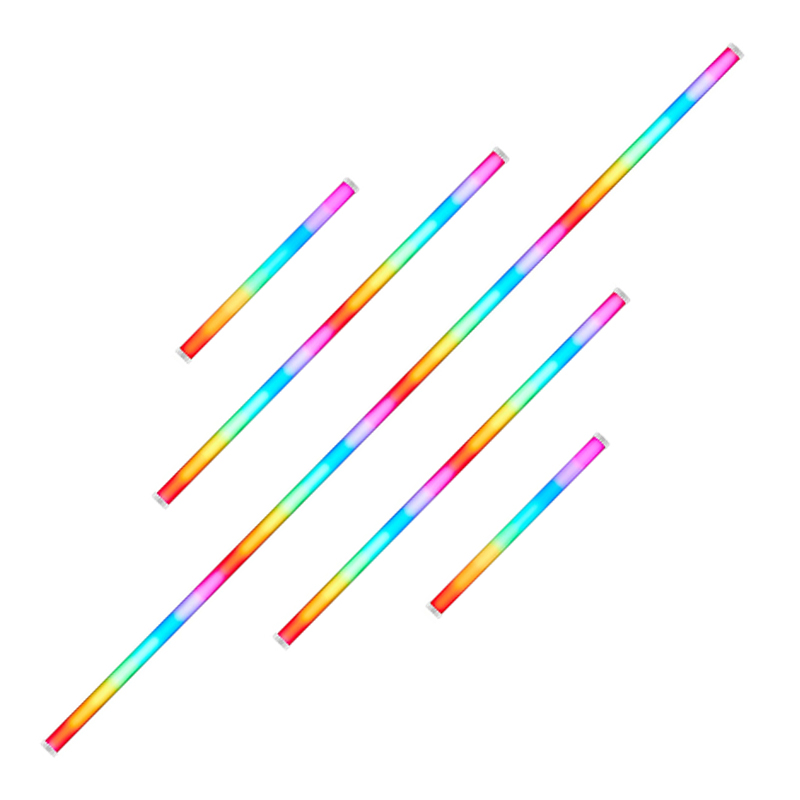

Pixel Tubes – Godox TP2R / TP4R / TP8R
Unleash the power of creative lighting in your videography – Godox KNOWLED™ Pixel Tubes let you embrace the beauty of abundant colors and varying visual moods even with a single light, sparking infinite inspiration for your creative projects. With a CCT range stretching from 2000 to 10000 K, and hue adjustment from 0° to 360°, you’ll have a vast color spectrum under your control. Distinct for their high pixel density and precise mapping, KNOWLED™ tubes ensure true-to-life scenes with exceptionally smooth pixel movement. Multiple available lengths allow for diverse pattern creation – they can be combined to create captivating scenes, adding a new layer of visual intrigue to your work.
Show specs
TP2R | TP4R | TP8R | |
DC input | 20 V⎓1.3 A | 20 V⎓2.35 A | 20 V⎓4.15 A |
Max. power | ≈ 26 W | ≈ 47 W | ≈ 83 W |
Battery | 14.4 V 2980 mAh | 14.4 V 5960 mAh | 14.4 V 11920 mAh |
Power supply | DC power cable Built-in battery V-Mount battery | ||
Battery life | ≈ 120 min | ≈ 140 min | |
Charging time | ≈ 120 min | ≈ 150 min | ≈ 180 min |
Waterproof grade | IP65 | ||
Avg. CRI | ≥ 96 | ||
Avg. TLCI | ≥ 96 | ||
Color temperature | 2000 – 10 000 K | ||
Modes | CCT / HSI / RGB / GEL / FX | ||
FX types | 17 | ||
Control | DMX512 Bluetooth / Godox Light App CRMX RDM Light body | ||
Bluetooth control distance | ≈ 30 m | ||
Radio control distance | ≈ 150 m | ≈ 100 m | |
Working temperature | -10 – 40°C | ||
Dimensions | 4,7 × 4,7 × 60 cm | 4,7 × 4,7 × 120 cm | 4,7 × 4,7 × 230 cm |
Weight | 0,84 kg | 1,5 kg | 2,94 kg |

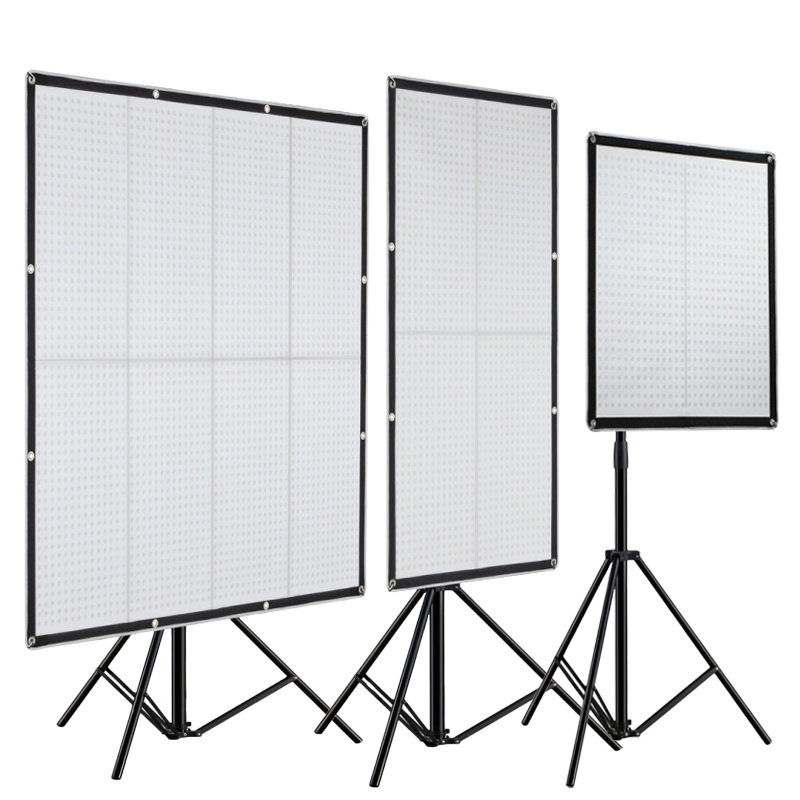

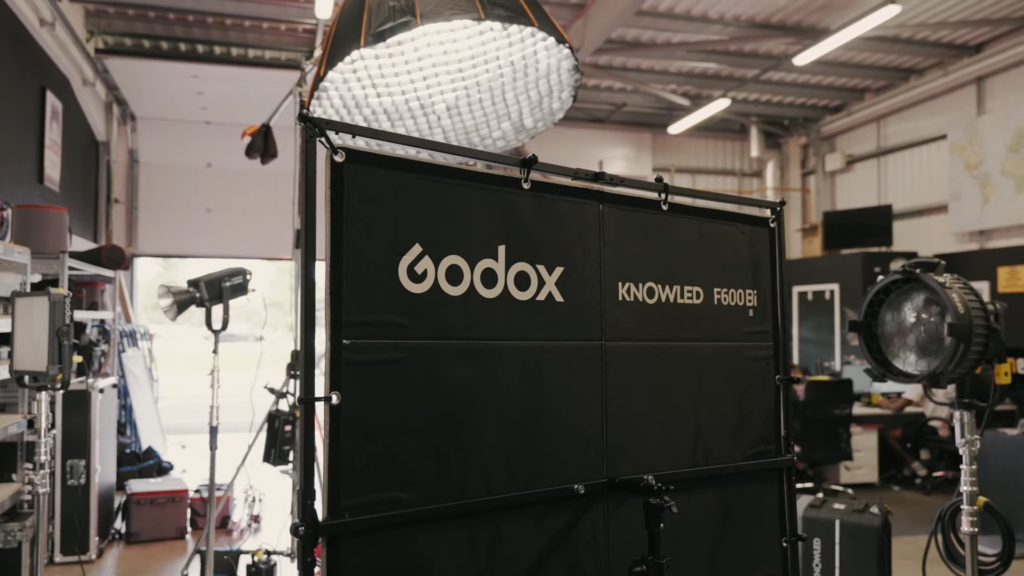

Flexible LED Mats – Godox F200Bi / F400Bi / F600Bi
Sleek, multi-functional, and built to boost versatility in any professional setting – these foldable LED light panels offer a variable color temperature, ranging from 2700 to 8500 K, providing a wide spectrum for cinematographers and photographers to work with. Their flexible, IP65 water resistant design offers unmatched convenience and mobility, making them an essential tool for professionals working on film sets. With high color fidelity, stepless brightness dimming, and multiple control options, these LED mats offer cinema-grade lighting performance, thereby ensuring accurate color reproduction even in challenging shooting conditions.
Show specs
F200Bi | F400Bi | F600Bi | |
Power supply | 100 – 240 V ~ 50/60 Hz | ||
2.1 A | 4.1 A | 6.7 A | |
Max. power | ≈ 210 W | ≈ 410 W | ≈ 670 W |
Color temperature | 2700 – 8500 K | ||
Brightness range | 0 – 100 % | ||
Dimming curve | Linear / S-curve / Exponential / Logarithmic | ||
FX types | 11 | ||
Avg. CRI | ≥ 96 | ||
Avg. TLCI | ≥ 96 | ||
Waterproof grade | IP65 | ||
Control | DMX512 with RDM protocol support Bluetooth / Godox Light App 2.4 GHz radio | ||
Bluetooth control distance | ≈ 30 m | ||
Radio control distance | ≈ 60 m | ||
USB type-A port | Firmware upgrade 5 V⎓1 A power supply | ||
Dimensions | Body: 65 × 63.1 × 2.9 cm | Body: 120.9 × 62.7 × 2.3 cm | Body: 121 × 121 × 2.4 cm |
Controller: 12.4 × 13.2 × 27 cm | Controller: 17.9 × 12.3 × 33.2 cm | ||
Weight | Body: 1.83 kg | Body: 3.1 kg | Body: 3.8 kg |
Controller: 2.77 kg | Controller: 3.07 kg | Controller: 3.9 kg |

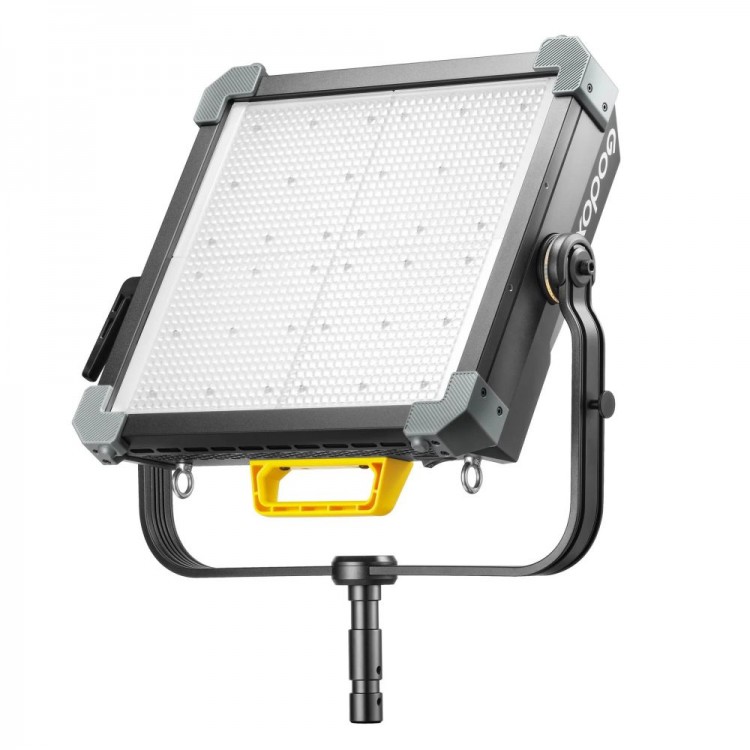

LED Panel Lights – Godox P600Bi Hard / P600R Hard / P1200R Hard
Delivering consistent, full power draw in any color temperature, P600Bi might be far from compact, yet its significant size is a testament to its power. With a dimension of 30 × 30 cm, it packs a punch in light-emitting capabilities and true-to-life, natural color reproduction through the entire spectrum of 2800–6500 K color temperature. The standout feature of Godox P600Bi Hard LED panel is the unique optical lens that boosts the light-emitting distance and ensures flawless blending.
P600Bi Hard specs
Power supply | 100 – 240 V ~ 50/60 Hz @ 7 A |
Max. power | 650 W |
Color temperature | 2800 – 6500 K |
Brightness range | 0 – 100 % |
Dimming curves | Linear / S-curve / Exponential / Logarithmic |
FX types | 11 |
CRI | ≥ 96 |
TLCI | ≥ 96 |
Control | DMX512 with RDM protocol support LumenRadio CRMX 2.4 GHz radio Bluetooth / Godox Light App Light body |
Bluetooth control distance | ≈ 30 m |
Radio control distance | ≈ 100 m |
USB type-A port | Firmware upgrade 5 V⎓2 A power supply |
Dimensions | 57.1 × 49.9 × 12.1 cm |
Weight | ≈ 10 kg |

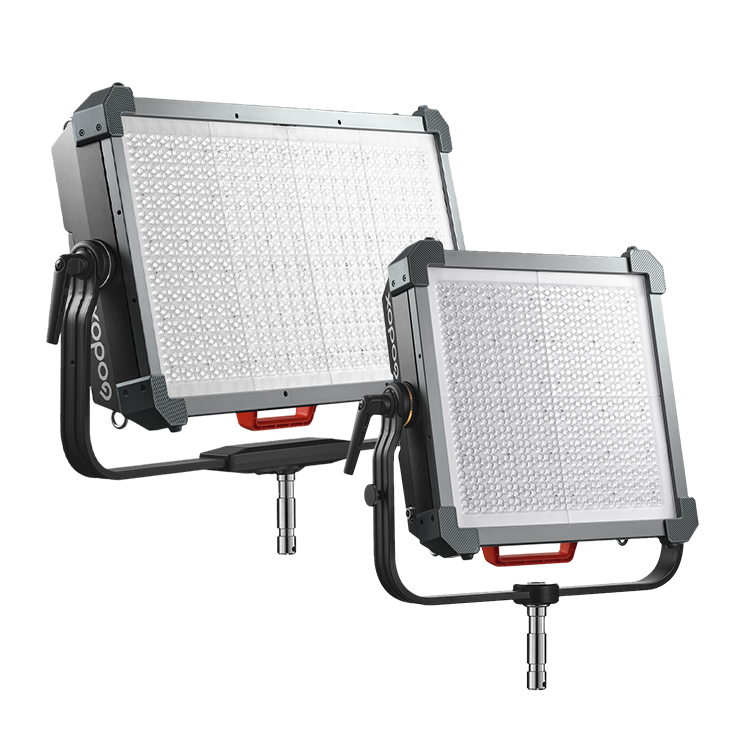

Building on the P600Bi Hard’s legacy, Godox introduced the P600R Hard and P1200R Hard. The P600R Hard mirrors the P600Bi in size and build, offering vibrant RGB lighting without sacrificing the original’s light-emitting power or color fidelity. The P1200R Hard, essentially a larger counterpart, doubles the size to enhance lighting coverage and intensity. Both models continue to feature the unique optical lens for extended light reach and seamless blending, now with the added versatility of RGB lighting.
P600R Hard / P1200R Hard specs
P600R Hard | P1200R Hard | |
Power Supply | 100 – 240 V~50/60 Hz @ 7A | 100 – 240V~50/60 Hz |
Max. Power | ≈ 700 W | ≈ 1500 W |
Color temperature | 1800 – 10000 K | |
Brightness range | 0 – 100% | |
Dimming curves | Linear / S-curve / Exponential / Logarithmic | |
Luminance | 3420 lux @ 5 m (5600 K) | 6650 lux @ 5m (5600 K) |
Color rendition | CQS ≥ 95 CRI ≥ 96 TLCI ≥ 96 | |
Control | DMX with RDM protocol support LumenRadio CRMX Ethernet Art-Net & sACN Bluetooth / Godox Light App Light body | |
Bluetooth control distance | Max. 30 m | |
USB type-A port | Firmware upgrade 5 V⎓1.2 A power supply | |
Dimensions | 49,6 cm × 57 cm × 11,9 cm | 83,4 cm × 60,6 cm × 17 cm |
Weight | 11,2 kg | 18,5 kg |

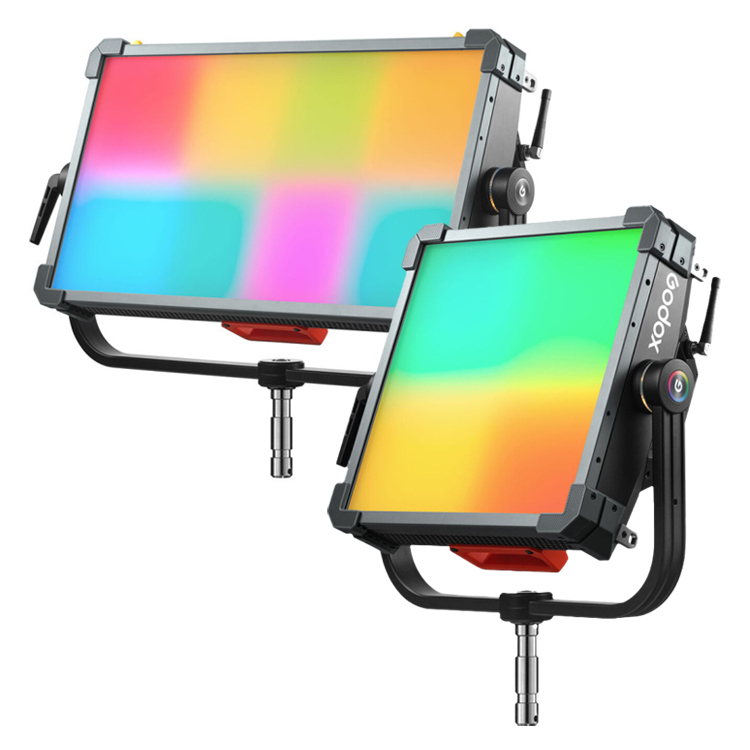

Pixel LED Panel Lights – Godox P600R / P300R
Expanding the LED panel lineup, the P300R and P600R introduce RGB lighting with Pixel Mapping Effects, offering high pixel density for smoother visuals. Mirroring the Hard series panels’ design, these models broaden the CCT range to 1800 – 10 000 K, allowing for more creative lighting control and enhancing the series with their advanced features.
P300R / P600R specs
P300R | P600R | |
Power Supply | 100 – 240 V~50/60 Hz @ 3.5 A DC 48V | 100 – 240V~50/60Hz @ 7A DC 48V |
Max. Power | ≈ 350 W | ≈ 700 W |
Color temperature | 1800 – 10000 K | |
Brightness range | 0 – 100% | |
Dimming curves | Linear / S-curve / Exponential / Logarithmic | |
Modes | HSI / CCT / RGBW / GEL / X-Y / FX | |
Color rendition | SSI (D55) 72 SSI (D32) 84 CQS ≥ 95 CRI ≥ 96 TLCI ≥ 96 | |
Control | DMX with RDM protocol support LumenRadio CRMX Ethernet Art-Net & sACN Bluetooth / Godox Light App Light body | |
Bluetooth control distance | Max. 30 m | |
USB type-A port | Firmware upgrade 5 V⎓1.5 A power supply | |
Working temperature | -20°C – 45°C | |
Dimensions | 56,3 cm × 49,8 cm × 15,5 cm | 77,6 cm × 56,7 cm × 15,3 cm |
Weight | 11,6 kg | 17,8 kg |

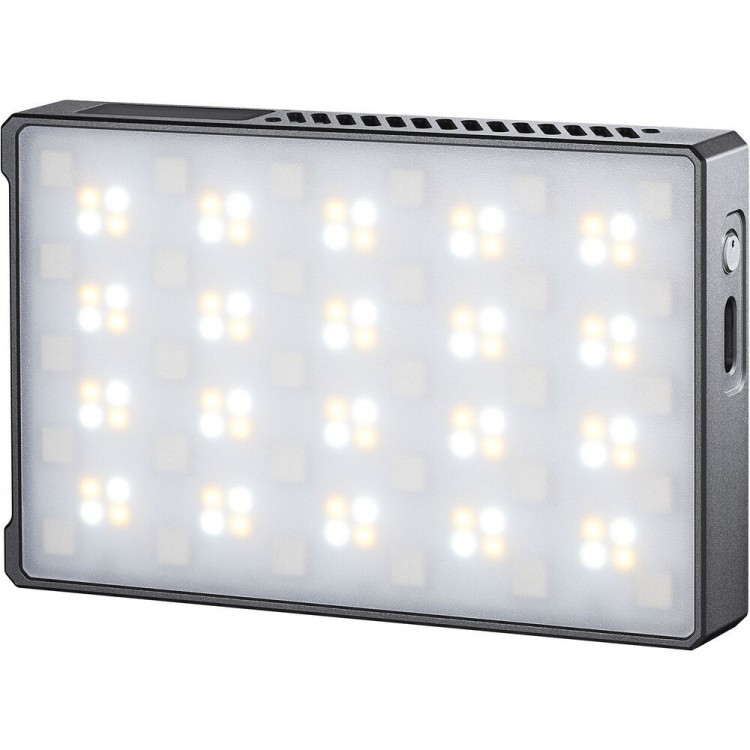

Accent Lights – Godox C5R / C7R / C10R
This palm-sized panel light effortlessly adds dynamic moods to any scene. With its vibrant multicolored ambient lighting, it enhances the visual appeal of your shots, crafting the perfect aesthetic. Magnetic strips on the back ensure simple attachment to metal surfaces. Boasting 39 cinematic FX effects and a broad color temperature range from 2500 to 8500 K, it’s incredibly versatile. The C5R offers a solid 2-hour runtime and supports convenient charging, either via Type-C cable or wirelessly.
C5R specs
Battery | 3.8 V / 3000 mAh |
Power | 5 W |
USB charging input | 5 V⎓2 A |
Wireless charging input | 5 V⎓1 A |
Color temperature | 2500 – 8500 K |
CRI | ≈ 96 |
TLCI | ≈ 97 |
Luminance (6500 K) | 2000 lux @ 0.3 m 760 lux @ 0.5 m 200 lux @ 1 m |
Brightness range | 0 – 100 % |
Wireless charging time | ≈ 3.5 hours |
USB charging time | ≈ 2.5 hours |
Control | Bluetooth / Godox Light App Light body |
Working temperature | -10 – 40°C |
Dimensions | 10.6 × 6.8 × 1.8 cm |
Weight | 169 g |

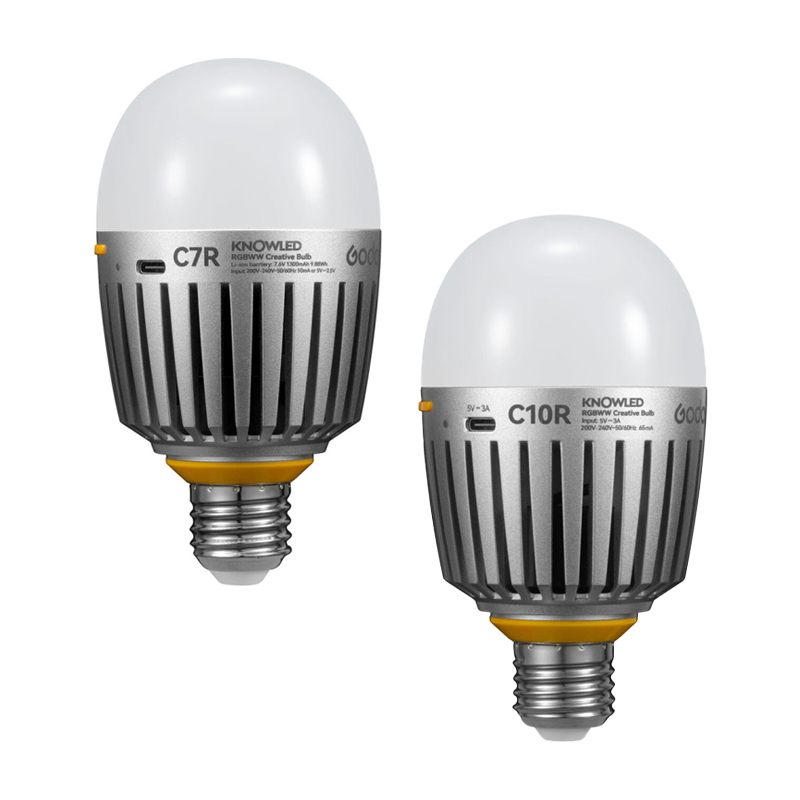

Expanding the ambient lighting range, the Godox C7R and C10R bulbs offer an impressive, 2000 to 10000 K color temperature range. These bulbs allow for seamless adjustments in color, effortlessly shifting the mood and enhancing the depth of your visuals. The C7R, equipped with a built-in battery, provides 7 W of power for portable illumination, while the C10R, without a battery, offers a stronger 10 W output. Both fit E27 sockets and can be powered with a power bank through a USB-C cable, blending flexibility with convenience.
C7R / C10R specs
C7R | C10R | |
Max. input power | 10 W | 12 W |
Battery | 7.6 V / 1300 mAh | — |
Battery charging time | ≈ 2.5 hours (AC 220 V) ≈ 3 hours (DC 5 V⎓3 A) | — |
Battery life | ≈ 1 hour | — |
DC input | 5 V⎓2.5 A | 5 V⎓3 A |
AC input | 100 – 120 V 50/60 Hz @ 90 mA 200 – 240 V 50/60 Hz @ 50 mA | 100 – 120 V 50/60 Hz @ 130 mA 200 – 240 V 50/60 Hz @ 65 mA |
Socket type | E27 | |
Color temperature | 2000 – 10 000 K | |
Brightness range | 0 – 100 % | |
Avg. CRI | ≥ 96 | |
Avg. TLCI | ≥ 97 | |
Luminance (5500 K) | ≈ 360 lux @ 0.5 m ≈ 101 lux @ 1 m | ≈ 470 lux @ 0.5 m ≈ 130 lux @ 1 m |
Control | Bluetooth / Godox Light App Light body | |
Bluetooth control distance | ≈ 30 m | |
Working temperature | -10 – 40°C | |
Dimensions | 7.3 × 7.3 × 13.6 cm | |
Weight | 256 g | 236 g |
Air Lights – Godox AT200Bi
Blending innovation with functionality, the Godox AT200Bi stands out by integrating an LED mat with an inflatable softbox, creating a vast emitting surface for gentle, even illumination, perfect as a soft light source. Its foldable, modular design allows for easy detachment of the air softbox from the LED mat, offering versatility in setup and use. With a color temperature range of 2700 to 8500K, it caters to various lighting needs, while its IP65 waterproof rating ensures durability and reliability in diverse environments.
AT200Bi specs
Power supply | 100 – 240 V 50/60 Hz @ 2.1 A |
Max. power | ≈ 210 W |
Color temperature | 2700 – 8500 K |
Brightness range | 0 – 100 % |
Dimming curves | Linear / S-curve / Exponential / Logarithmic |
FX types | 11 |
Avg. CRI | ≥ 96 |
Avg. TLCI | ≥ 96 |
Waterproof grade | IP65 |
Control | DMX512 with RDM protocol support 2.4 GHz radio Bluetooth / Godox Light App |
Bluetooth control distance | ≈ 30 m |
Radio control distance | ≈ 60 m |
USB type-A port | Firmware upgrade 5 V⎓1 A power supply |
Dimensions | Body: 28 × 26.7 × 12.2 cm |
Controller: 12.4 × 13.2 × 27 cm | |
Weight | Body: 2.15 kg |
Controller: 2.8 kg |

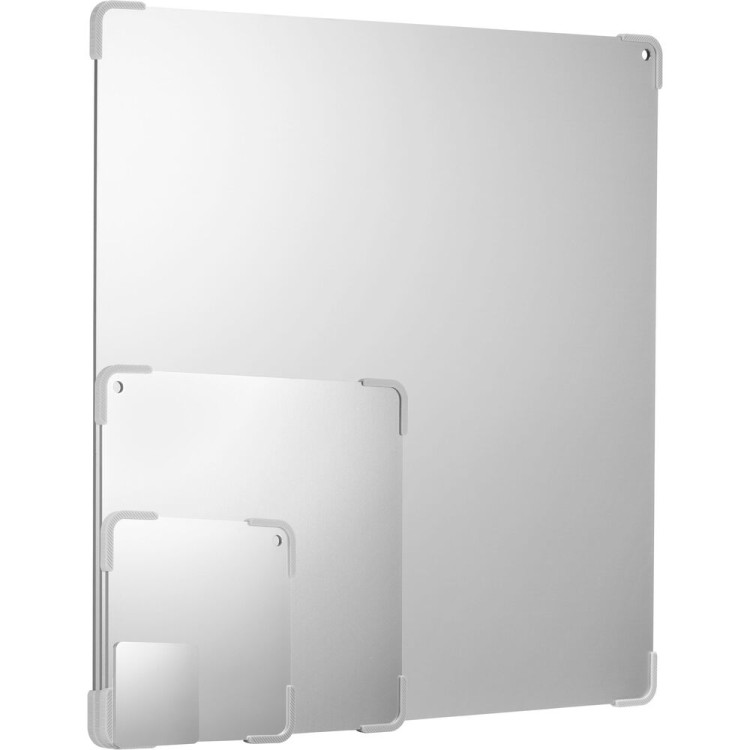

LiteFlow Cine Reflectors
LiteFlow cine lighting reflectors redefine industry standards with a mere 3% power loss, delivering exceptional reflectance for premium-quality light in diverse settings. Their innovative design features four unique diffusion types, each available in five sizes, enabling unparalleled precision in illumination control. By replacing traditional, bulky flag setups with its lightweight design that mimics natural light decay, LiteFlow offers a range of light characteristics, making it the perfect choice for filmmakers in search of versatile and effective lighting solutions.
Craft Your Stories With Light
As we wrap up our exploration of the Godox KNOWLED™ series, it’s clear that they are so much more than mere filmmaking lights. They represent a fusion of artistry and technology, enabling all filmmakers to sculpt stories out of light and shadow. Their remarkable versatility and efficiency cater to the seasoned professionals, making them an essential tool in the world of visual narration. The brilliance of Godox KNOWLED lights extends beyond their physical glow, serving as a beacon of creative potential just waiting to be discovered. Dive into the world of Godox KNOWLED lights and let your creativity shine – learn more about the series in the videos below!
